[HOW-TO][HVAC][Gen III Dakota][Gen I Durango] Blower Resistor Diagnosis/Replacement

266873 Views 139 Replies 83 Participants Last post by  Hempshaw
Since this question, or variations of it, comes up quite often I thought I’d write a thorough how-to which can be linked to or (hopefully) found in a search.


Your heating & air conditioner blower motor suddenly stops working, only works on certain speeds, or just seems to not blow as hard as it used to.

Applies to (as far as I know):
2001 – 2007 Durango
2001 – 2004 Dakota


99.9% of the time your blower motor resistor block has gone bad. The resistor block is part of the ground path of the blower motor circuit, which in conjunction with the fan speed selector switch controls the speed of the fan by varying the amount of resistors in the electrical path (more resistors = slower speed, fewer resistors = higher speed). This is an easy fix and the new part costs less than $20. If you’re like me and would like to know for sure, read ahead to the “Troubleshooting” section. If you want to play the percentages and just go ahead and change it, skip ahead to the “Removal & Replacement” section.


In order to troubleshoot the resistor block it will be easiest if it is removed from the truck (see Removal and Installation in post #2). Use the following diagram for this procedure.

Pin 2 at the top left goes to the motor, 1, 3, 4, & 5 go to the switch. What happens is a positive source is routed through a fuse and the ignition switch straight to the motor. The ground for the motor is routed through the fan speed selector switch and in turn the resistor block. When you rotate your switch, you are actually controlling the routing of the motor ground through this resistor block. Notice how if the ground goes through pin 5 then out pin 2 it has to pass through 3 resistors? That would be your low speed. See how there is a direct path between pins 1 and 2? That is your high speed. More resistors, lower speed.

If you look closely at the plug, you can read the pin numbers. Older styles may not have these numbers, so use the following picture:

With the connector tab at the top, pin 1 is on the left, pin 5 on the right.

It may also be on the vehicle side of the plug:

Measure from the following points (you should see approximately the following readings).

pin 2 to pin 1 = 0.2 ohms (very little resistance)
pin 2 to pin 3 = 0.7 ohms (some resistance)
pin 2 to pin 4 = 1.3 ohms (more resistance)
pin 2 to pin 5 = 2.4 ohms (most resistance)

If any of those combinations have no continuity, something is wrong with the resistor block. If all those resistance readings are correct, or you just love troubleshooting, you can do the following two steps by disconnecting the blower motor plug. (Here is what you’re looking for, follow the black and green wires around towards the front of the truck to find the motor plug)

1. Disconnect the blower motor plug (seen disconnected in the following picture, for this step you want the plug indicated by the blue arrow) and connect a wire between pin 2 and ground, then between pin 1 and a 12v source (fuse block, battery, etc…). This will verify the blower motor functions correctly. Notice in the picture the plug is held up by two friction tabs, you can pull down and release those tabs for easier access.

2. Using the following diagrams, and with the blower motor plug disconnected, connect one lead of your meter to pin 1 of the vehicle side of the plug (Red arrow), then the other meter lead to a suitable ground. Verify the resistor block is plugged in to the vehicle harness. Rotate the fan speed selector switch through all the positions and watch the resistance change on the meter (should be similar readings as above). This will verify your speed selector switch and all the wiring has proper continuity. If any resistance reading seems incorrect, and you have already separately checked the resistor block, continue to troubleshoot the speed selector switch and the electrical connectors themselves.

Continued in post #2
See less See more
  • Like
Reactions: 5
1 - 5 of 140 Posts

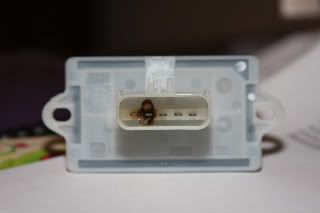

so if the harness that holds the resistor pack gets melted like the one in the picture does the whole harness have to be replaced or can you put dielectric grease on the prongs and everything be fine.

Notice the nice charring on the second pin

See less See more
  • Like
Reactions: 1
I meant the harness not the resistor pack as far as replacing the harness that plugs into the resistor pack I do have some charing on the harness itself.
Also would it be a good idea to go ahead and replace the blower motor while I am at it.
I really don't have time to get to the junkyard during the week so I was hoping that it would work until I could get to the yard this weekend. This is the wifes truck and she drives it during the day and it is cold out and without heat I am not hearing the end of it.
  • Like
Reactions: 1
Well I replaced both the blower motor and resistor and of course it works like a champ but I was looking at the plug and saw that the #2 that melted on the resistor the wire on the pplug side looks like it took some damage so hopefully I can get to the junkyard this weekend so I can replace that. Thanks for all the input and help this site is great for knowledgable people that like to help others fix problems the inexpensive way.

rep 2 you all who helped me
Great tutorial....
I just did this repair a month ago on my 2004 DAK. The resistor cost me $13 but the wiring harness was $75. Fried it but good...The harness was melted together and I could not pry it apart. Working great now! Winters coming.
Have you had any problems since you replaced that wire harness section? I had to order one from the stealership and it is going to cost me $66 which sucks cause now I have to buy another resistor pack.
